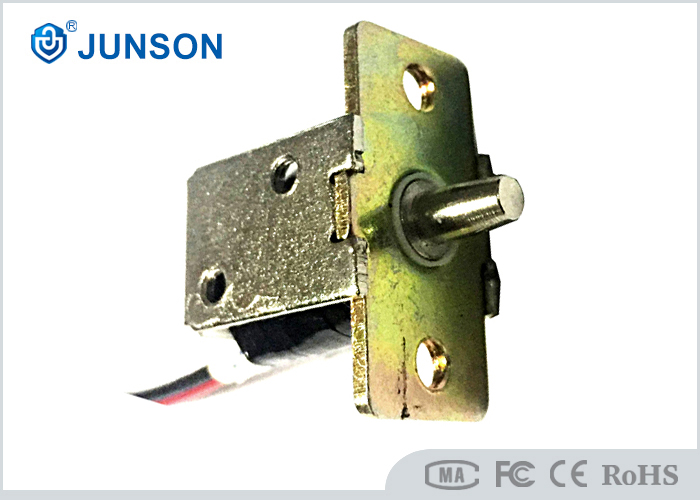

Mini Electric control lock Intelligent embedding Electric solenoid lock
Specifications:
| Lock Dimension | 29*20*16mm |
| Stroke | 4.3mm |
| Fail secure | locked when power off |
| Materials | Fine copper coils |
| Lock pole length | 28.3mm , Round |
| Duty cycle | Electrify 25% |
| Working Current: | 0.54A |
| Consuming power | 4.8W |
| DC Resistance | 28Ω±10% at 20℃ |
| Voltage | 12V DC |
| Open time | 1S |
| Continue power on | ≦15S |
| Operation temperature | -5℃ -55℃ |
| Operation Humidity | 5-85℃ |
| Available | storage cabinet lock, mailbox, express locker |
| Packing: | 200pcs/ carton |
| Weight: | 0.05kg/pcs |
| Carton size: | 32L*22W*16H (cm) |
Electronic characteristics
1. Holding force: stroke 0mm≥300gf, stroke 5mm≥80gf
2. Residual magnetism: After DC 12V applied be return at weight of ironrod 5gf (prependicular direction )
3.Temperature rise: After DC12V applied by resistance method 65 deg Max
4. Life: Repetitious operation for 0.5 million cycle (continuous at DC12V)
5. Insulation resistance: Between coil and frame Dc 500V normal temperature /humidity, 100MΩ
6. Lead-wire strength: adding 0.5kgf (random direction) not chip off
7. Withstand Voltage: Between coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA
Lock Size drawing:
Why Choose JUNSON:
1. Junson security specail made all kindly of locks, like magnetic lock, bolt lock, soleniod lock since 2004,
2. Junson security have strict quality control system during materials, production and leaving factory
3. All productions will be given 3 years warranties, and whole life technical supporting
